Product description
Material: Made of PE material.
Usage: first fix one end of the starting point with the protective belt, and then surround the cable in a clockwise direction to tighten the wire harness as a whole.
Application: It can protect the wire from wear and insulation, and improve the appearance of the bending of the wire.

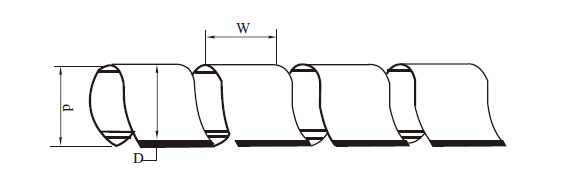

| 编 号 Item NO. | 外 径(D) (mm) | 螺距(W) (mm) | 壁厚 | 包 装 Packing |
| SZY-4 | 4 | 5 | 0.6 | 28m/roll |
| SZY-6 | 6 | 7 | 0.7 | 14m/roll |
| SZY-8 | 8 | 11 | 0.7 | 0.5m/roll |
| SZY-10 | 10 | 11.5 | 0.7 | 8m/roll |
| SZY-12 | 12 | 14 | 0.9 | 5.5m/roll |
| SZY-14 | 14 | 14.5 | 0.9 | 4.5m/roll |
| SZY-16 | 16 | 15 | 0.9 | 4m/roll |
| SZY-18 | 18 | 16 | 1.0 | 3m/roll |
| SZY-20 | 20 | 17.5 | 1.2 | 2.8m/roll |
| SZY-22 | 22 | 19.5 | 1.2 | 2.5m/roll |
| SZY-25 | 25 | 21 | 1.3 | 2m/roll |
| SZY-28 | 28 | 22 | 1.5 | 1.8m/roll |
| SZY-30 | 30 | 23.5 | 1.5 | 1.5m/roll |
Key Features:
Material: High-density polyethylene (HDPE) or reinforced composite options available.
Structure: Spiral-wound design for enhanced flexibility and impact resistance.
Applications: Underground drainage, gas/liquid transport, cable protection, and irrigation systems.
Benefits: Lightweight, easy to install, UV-resistant, and low maintenance.
Why Choose Our Winding Pipe?
Superior Durability – Resists cracking, chemicals, and extreme weather.
Cost-Efficient – Lightweight design reduces shipping and installation costs.
Eco-Friendly – Recyclable materials with a low carbon footprint.
Custom Solutions – Tailored sizes, colors, and coatings available.
Applications
Industrial: Chemical plants, mining, and wastewater treatment.
Agriculture: Drip irrigation, greenhouse drainage, and livestock water systems.
Infrastructure: Roads, bridges, and underground utilities.
Electrical: Cable protection for power lines and telecom networks.
