Product Description
Material: Made of UL approved nylon 66 material, 94V-2 fire rating, acid resistance, corrosion resistance, good insulation, not easy to aging, strong bearing capacity.

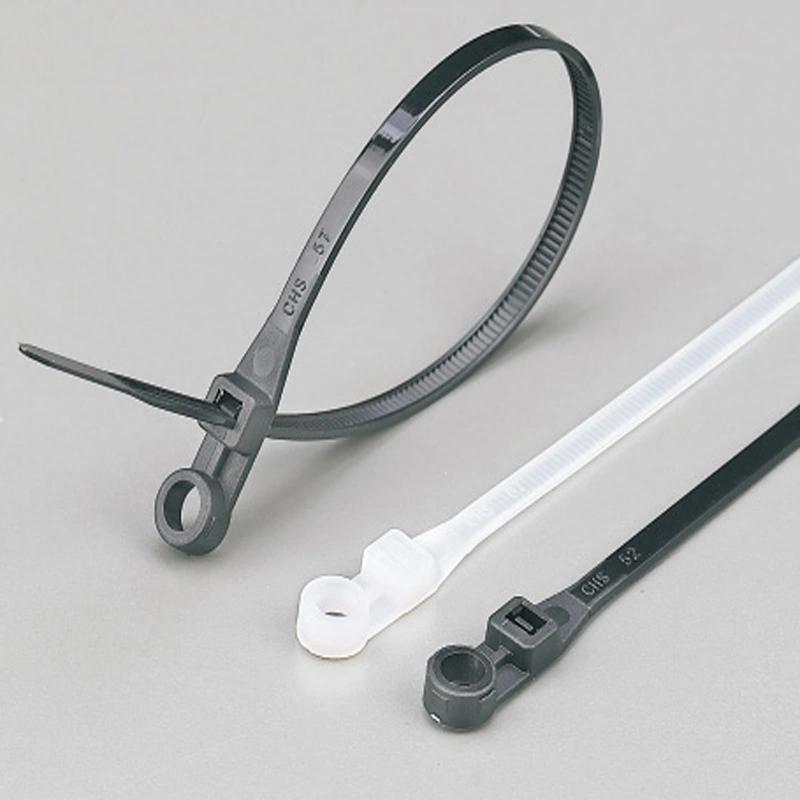

Features: after tying the hole wire, the whole bundle of wire is fixed on the substrate with screws.
| 编 号 Item NO. | L(长) | W(宽) (mm) | 最大捆扎范围 Max.Bundle Dia. E (mm) | 孔径(φ) Hole Dia.(mm) | 拉 力 Min.loop Tensile Strength | ||
| Inch | mm | LBS | KGS | ||||
| SZYS-110MT | 4 1/3″ | 100 | 3.6 | 22 | 4.5 | 18 | 8.0 |
| SZYS-150MT | 6″ | 145 | 3.6 | 32 | 4.5 | 30 | 13.6 |
| SZYS-200MT | 8″ | 220 | 4.3 | 42 | 5.5 | 50 | 22 |
| SZYS-380MT | 15″ | 381 | 7.6 | 98 | 6.2 | 120 | 55 |
Applications:
Automotive wiring harnesses
Industrial equipment maintenance
Solar panel installations
Home DIY projects
Why Choose Our Product?
Bulk Packaging: Available in 100–1000pcs per roll for cost-effective inventory.
OEM/ODM Services: Customize colors, sizes, and branding.
Global Compliance: Meets international safety standards for export markets.
